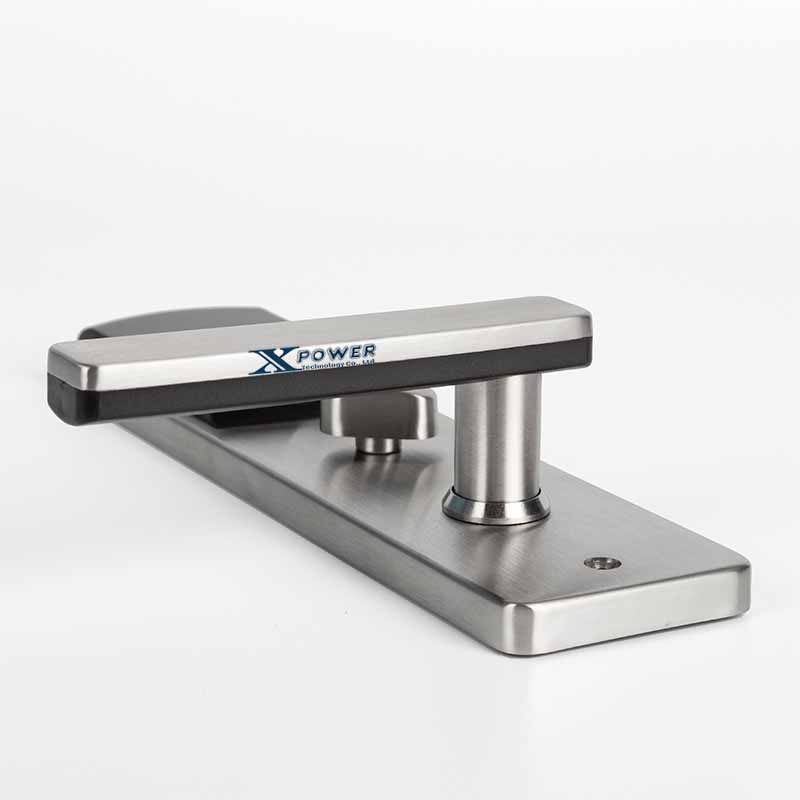

XPOWER XHSR903
CHUYÊN DỤNG CHO CỬA GỖ (Tương thích các loại cửa thép, cửa composite…) | |
| Đối tượng | Khách sạn, Trường học, Ký túc xá |
| Thân khóa | Hợp kim nhôm, thép không gỉ + Acrylic |
| Ruột khóa | Hợp kim thép không gỉ |
| Màu sắc | Steel silver |
| Phương thức | Thẻ từ, chìa khóa cơ dự phòng |
| Loại Chip: | EM, TEMIC, MF1, ID |
| Loại thẻ | RF Card |
| Nguồn gốc | Trung Quốc |
| Thương hiệu | XPOWER |
| Nhập khẩu và phân phối | Công Ty TNHH Công Nghệ Xpower |
| Bảo hành tại Việt Nam | Công Ty TNHH Công Nghệ Xpower |
| Đóng gói tiêu chuẩn 01 bộ/hộp 10 hộp/thùng carton |
|
Advantages:
1. USA standard 5-lock Tongue Structure Lock Core, hierarchical management;
2. Triple mute lock body;
3. Lock face has no artificial rivets and advance plastic parts (acrylic).
4. The board support anti-interference and error correction feature;
5. The circuit has been damp-proof and dust-proof processed before shipping;
6. The lock information will not loss when power off;
7. A clock inside the lock control the key card using time;
8, Anti-static support;
9, Low voltage warning;
10, Fit door thickness: 40-75 mm.
11, Fit door type: wooden door, steel door, anti-thieft door
| Basic Needs for Hotel Lock System | |
| Software | The software support English and Thai languages for now. And we are delovping the Russian, Spanish, Portuguese and Vietnamese. Need more time. We can provide the Win32 Dynamic Library for you to integrate with other software. |
| Card Encoder | It is necessary for hotel lock system, which is used to issue room card; It support 2 or more encoders work at the same time, If your Reception has 2 or more computers, this one is perfect for your project. |
| Handset PDA | This one is optional, but helpful. Suggest to take 1 for 1 hotel project; You can set all room information on PC first, then download all the room information to the handset PDA at once, and then install one by one, easy for lock installation; Also it can Proofread the lock time, Operate check-out, read door opening records, upgrade lock firmware, Synchronize PC software information; |
| Door Lock | Please choose the door lock according to your door type and contact us to double confirm the installtion details; |
| RF Card | The card is necessary, which is not included in the lock standard packing list. The card can be T5557 card or M1 card; The default is T5557 card; The default card is white card; If you need printing images/ logo/ hotel information on card, no problem!!! |
| Optional Needs for Hotel Lock System | |
| Energy Saving Switch | It is optional, but helpful to save power. When guest insert the room card, then the room will get electricity. |
| Public Door Access Reader | It is optional; With the public door access reader, the guests room card can unlock the gate public door; |
| Elevator controller | It is optional, for hotel security, some hotels will use it; The guests need to swipe the room card to active the elevator, without the card, the elevator will not active; |
| Other features | If you want one card with more features, like shopping card, dining card, bath card, please contact us. |
Specification:
| PRODUCT MODEL | XHSR903 (Specific for wooden door) |
| Material | Aluminum alloy + Stainless steel + Acrylic |
| Application | Hotel, office, home, school, villa etc |
| Reading card distance | ≤3cm |
| Static power consumption | Less 30μA |
| Working current | 5-40mA |
| Working temperature | -10℃-60℃(-20℃-70℃) |
| Antistatic | Support |
| Working voltage | DC6V 4pcs AA batteries, last 15,000 times unlock |
| Color | Black,Gray |
| Unlock way | RF card, Mechnical keys |
| Lock body | Stainless Steel |
| Dynamic power consumption | Less 150μA |
| Standby current | Less 25μA |
| Chip type | EM, TEMIC, MF1 and ID |
| Undervoltage instruction | Support |
